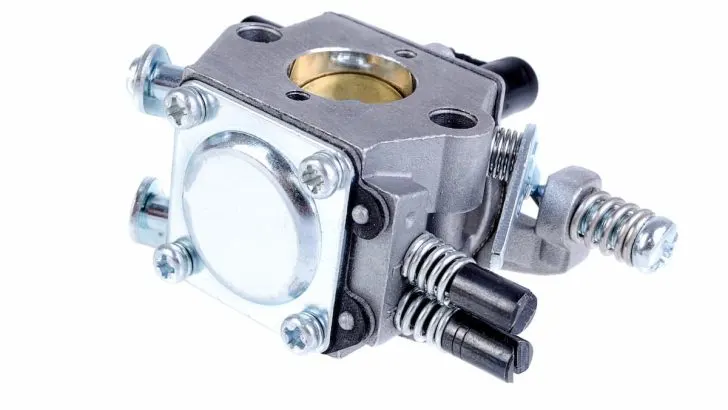

If you’ve ever used a Stihl chainsaw, you know they’re some of the best on the market. But even the best chainsaws can have problems from time to time. One of the most common issues is a carburetor that needs to be adjusted.
To adjust a Stihl chainsaw carburetor, you’ll need to use a screwdriver to turn the low, high, or idle speed adjustment screws. First, you’ll need to clean the air filter. Then, you’ll locate and adjust the three screws as appropriate. This will ensure the engine runs smoothly.
In this article, I’ll walk you through the steps you need to take to adjust a Stihl chainsaw carburetor. I’ll also explain the role of each adjustment screw and mention some common issues with the Stihl chainsaw. So read on to learn more!
1. Prepare the Chainsaw
Before you begin adjusting the carburetor, there are important things you need to do to prepare the chainsaw.
- Turn the chainsaw off. Then, allow the chainsaw to cool down properly before adjusting the screws.
- Remove the top cover. Most people use a magnetic screwdriver like the HXSNEW Magnetic Screwdriver Set (link to Amazon). This set has 10 pieces that are all easy to hold and use.
- Clean the air filter. You can use soapy water to clean the air filter. Don’t adjust the carburetor when the air filter is dirty.
Once the chainsaw is prepared, you can begin adjusting the carburetor.
2. Locate the Adjustment Screws
These screws are marked as L, H, and I. You’ll find them near the handle on the left side of the Stihl chainsaw. The three screws are used to regulate the carburetor mixture. In addition, they regulate the flow of air and fuel in the chainsaws.
Idle Speed Adjustment Screw
The idle speed screw is labeled as (I). You can use this screw to adjust the engine speed when the chainsaw is idling. The idle speed screw controls the chainsaw’s idle RPMs (revolutions per minute). It can also regulate the flow of air and fuel.
Low-Speed Adjustment Screw
The low-speed screw is labeled as (L) on your chainsaw. The screw adjusts the engine speed when the chainsaw runs at a low speed. The low screw controls the amount of fuel delivered to the engine at low speeds.
However, it can only function efficiently if it’s not too tight. Otherwise, it can spike the engine’s RPM (source).
High-Speed Adjustment Screw
The high-speed screw is labeled as (H). The screw adjusts the engine speed when the chainsaw runs at high speed. The high-speed screw controls the amount of fuel that’s delivered to the engine at high speeds.
Overtightening this screw can prevent the fuel from flowing. Likewise, loosening the screw will slow down the RPM. This will cause a high fuel mixture.
3. Adjust the Low-Speed Screw
To adjust the low-speed screw:
- Use a screwdriver to turn the L screw clockwise. Clockwise rotation will decrease the speed, while counterclockwise rotation will increase it.
- Then turn the screw counterclockwise until the engine begins to speed up.
- Identify a central setting between the low and high points to tune your carburetor.
4. Adjust the High-Speed Screw
The high-speed screw controls the amount of fuel mixed with the air at high speeds. To adjust it:
- Turn the screw clockwise until it is tight.
- Then turn it counterclockwise until it rests the carburetor to its default setting.
5. Adjust the Idle Speed Screw
The idle speed screw controls the amount of air that is allowed into the engine when it’s idle. To adjust the idle speed:
- Locate the screw and turn it clockwise until the chain spins.
- Then slightly turn it counterclockwise to stop the spinning chain. You may need to experiment a bit to find the perfect setting.
That’s it! Adjusting the carburetor on your Stihl chainsaw is a simple process that only takes a few minutes. You can now start operating your chainsaw.

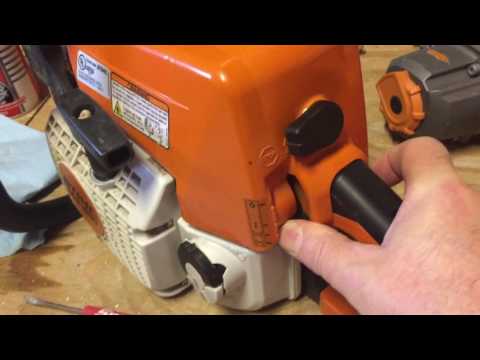

Check out this video if you need a demo of adjusting your Stihl chainsaw carburetor:
By following the steps outlined above, you can ensure that your chainsaw runs at peak performance.
Common Issues That Affect the Functionality of Stihl Chainsaw Carburetor
If your Stihl chainsaw isn’t running properly, it can be because of several issues with the carburetor. Here are some common carburetors problems you might want to check out:
Clogged Air Filters
A dirty or clogged air filter is one of the most common issues with chainsaws (source).
The air filter keeps dirt and debris out of the engine. If it’s clogged, the engine won’t get enough air and won’t run properly. Restricted airflow can cause all sorts of problems. For instance, it can damage your engine. Also, this will cause your chainsaw not to start at all.
Build-Up of Debris in the Carburetor
Another common issue is a build-up of debris in the carburetor. This can happen if you use the saw in dusty or dirty conditions. In this case, the engine runs rough or stalls.
A dirty or clogged carburetor can restrict airflow and cause the engine to run lean. A build-up of dirt and grime can also cause the carburetor to overheat, potentially damaging it.
If you’re having trouble with your Stihl chainsaw, it’s a good idea to check the air filter for any debris build-up. Cleaning these parts can help restore proper engine function and help your saw run efficiently.
You can borrow some tips for cleaning your Stihl chainsaw’s air filter from this video:
Other Issues Affecting Stihl Chainsaw Carburetors
Other issues include:
- Worn or damaged spark plugs. This can cause the engine to misfire and run less efficiently.
- Leaks in the fuel system. The fuel line delivers fuel from the tank to the carburetor. The fuel flow will be hampered if it’s cracked, leaking, or blocked. This can cause the engine to malfunction.
- Difficulty in adjusting the carburetor. Another issue that can occur is the carburetor becoming out of adjustment. This can cause the engine to run too lean or too rich, leading to engine problems.
If you are having problems with your Stihl carburetor, it’s best to take it to a qualified technician for repair.
You can’t work if your chainsaw engine seizes. But before giving it to a repairman, you should read my guide, where I presented some tips on getting your chainsaw working again.
Conclusion
Malfunctions in your carburetor result from several issues and can cause a lot of problems. For example, if the carb isn’t adjusted properly, the chainsaw may run too lean or too rich for your liking.
Fortunately, you can adjust the carburetor by following the steps mentioned above.
Just remember to take your time, be careful, and consult your user manual if you’re unsure about anything.
